Which road is on top

Every edge gets numbers for where its outline and its road are drawn. The map is drawn by those numbers alone; a solver works them out, and an editor lets you fix any place by hand.

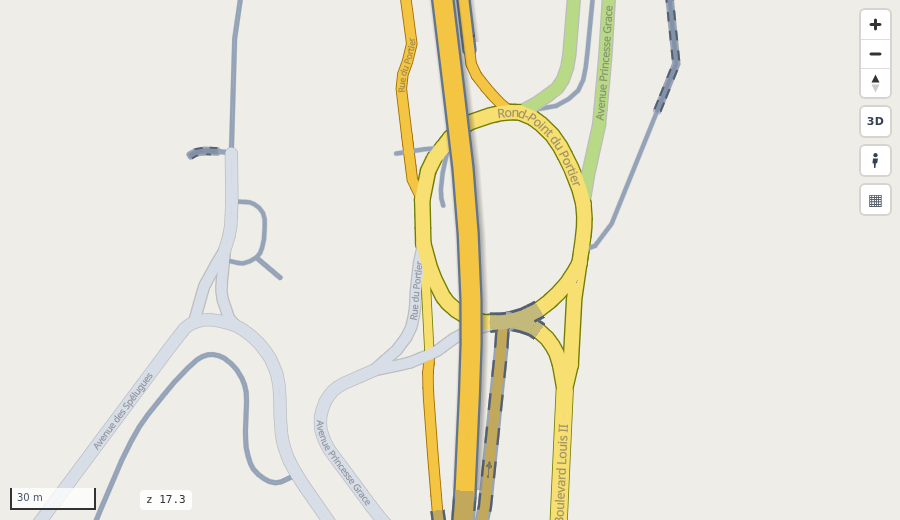

Monaco, Rond-Point du Portier: the primary road crosses the roundabout on a bridge (slate outline, soft shadow), and a tunnel (dashed outline) passes under both. Where the roads only meet, the roundabout is on top; where they cross, the bridge is.

PythonCommand line

rs.render_edges(edges).save("map.html")    # the positions are computed for you

# the level step with files you can read and edit (an area folder)
roadstyle-levels make edges.gpkg out/area     # the solver's input
roadstyle-levels solve out/area               # levels.csv
roadstyle-levels edit out/area                # the editor, http://localhost:8780/

The rule

• Every edge has a casing position and a fill position: whole numbers, 0 is the ground, null counts as 0.
• The casing has three parts: a start head, a main part and an end head, each with its own number (casing_start, casing_level, casing_end). The heads are 5 m long by default; on a short road the main part can have no length.
• The map is drawn position by position, lowest first. At each position every outline is drawn first, then every road.
• So two roads that meet at a junction merge without a ring: each head lies under the other road's fill.
• A road whose numbers are all higher than another's is drawn completely over it, outline included: an overpass.

Nothing else orders the drawing: not the road class, not layer, bridge or tunnel. They are only inputs of the solver. Two edges at the same position are drawn in no set order.

Where the numbers come from

The level step works them out, before drawing (design). render_edges(edges) without level columns runs it for you with its defaults. It has two halves:

1. The input (rs.level_input(edges)): one row per road (both directions together) and the pairs between roads. Roads of different bands (layer, bridge, tunnel) that cross become a stack: the higher band is over the lower one, written as one row per part of the upper road's casing that crosses (start, main, end), worked out here once with the heads of that time. Roads that only meet (a junction, a tunnel mouth, a bridge end) become an order wish: a roundabout over a tunnel, a tunnel over a bridge, a bridge over the road class. A roundabout is known by the OSM junction column: without it you get a warning.
2. The solver (rs.solve_levels(roads, pairs, edits=...)): whole numbers (integer programming with HiGHS), kept in this order: real crossings, then the order wishes, then as few positions as possible. The near rules (lifting the parts that only come close to the road under them) are off by default since 2026-10-08: on Monaco all modes they cost 45.9 s and 27 positions against 14.4 s and 9 without (and 1,477 of 11,911 near rules broke anyway). Turn them on with near_rules=True (CLI: make --near-rules: they are written as near rows); an edits.csv stack is always a real rule. The solver reads only the tables, never the lines or the head lengths (2026-10-08): a head change needs no solve.

levels = rs.compute_levels(edges)          # both halves in one call
rs.render_edges(levels, casing_start_col="casing_start", casing_level_col="casing_level",
                casing_end_col="casing_end", fill_level_col="fill_level").save("map.html")

Computing takes seconds for a district and longer for a big network: compute once, then draw with the columns.

Fix it by hand: the level editor

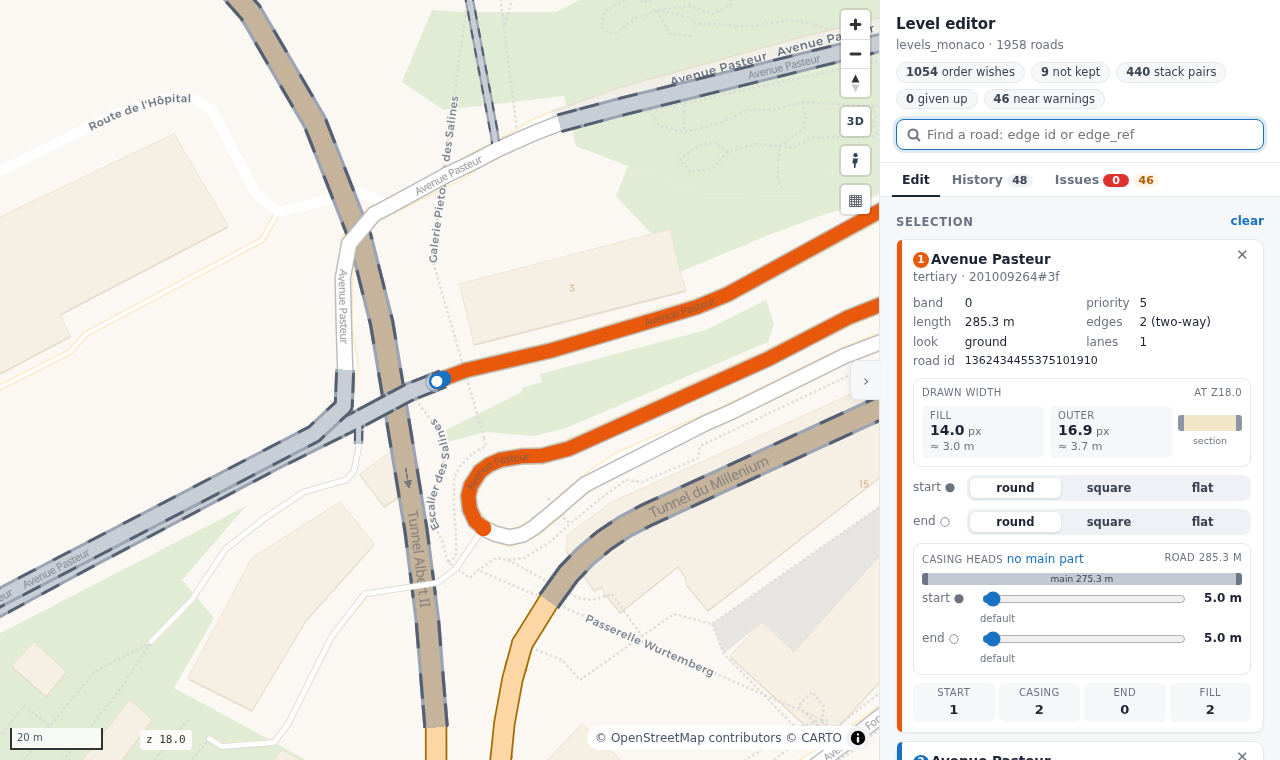

roadstyle-levels edit out/area opens a local page with the map and a panel. Click a road, or find it by edge id or edge_ref; pick a second one to see every pair between the two.

• Add a relation: order (whose fill is on top where they meet), stack (one over the other: pick the parts of its casing, start head, main, end head, one row each; whole road picks all three) or meet (join two ends). You choose which road is on top.
• Switch off a row the input found. Rows add up: your stack rows lift their parts on top of the found ones. To override a found stack, press Switch off all found stack rows of this pair (one switch-off per row), then add your own parts.
• A guard before you add: the page asks whether the new rule conflicts with the rules there are (found, yours, and the list) and names them: the same rule already there, or a loop (A over B, B's fill after C's, C over A: no numbers keep them all, so the solver would give one up). You can still add it, except an exact copy of a row already in edits.csv: Apply refuses it.
• Each end of a road: its cap (round, square, flat) and its head length (a slider, in metres). The map shows each end's cap. The automatic cap is round, except a two-way road's dead end (an end that meets no other road): square, so the one casing around both directions ends in one clean full-width end.
• Changes wait in a list until Apply and solve: they are solved together, and the open map redraws the roads that changed in place (more than 1,500 changed roads: the page reloads, and says so). If the solver refuses them, nothing is saved. Start new session moves what is in edits.csv now under Already in edits.csv and starts the list of changes empty (nothing is deleted). A change of caps or heads is saved and drawn without a solve: they are drawing only. Which parts of a stack cross is decided when the area is made, with heads.csv's heads; run make again to decide it with new heads.
• Show only some modes: when the roads have a modes column (who may use them, e.g. driving + walking; duckOSM gives it), boxes under the search show only the roads of the ticked modes (display only: every road is still solved). A road's card shows its modes.
• The Issues tab lists what to look at: given up (red: a real crossing the solver could not keep, a flaw on the map), near warnings (amber: two roads that only come close; only with near rules on, otherwise none) and the order wishes not kept.

Your changes live in three small tables in the area folder, never overwritten by the input step:

file	what
edits.csv	your rows: relation (order, stack, meet), a, b, a_end (a stack's part: start, main, end), b_end, enabled (false switches that exact found row off)
heads.csv	head lengths per road end in metres (road, start_m, end_m; empty: 5 m); read by make for the stack rows
caps.csv	cap per road end (road, start, end: round, square, flat; empty: round)

levels.csv is the result: per edge its four numbers and its ends as drawn (head_start_m, head_end_m, cap_start, cap_end). An area made before 2026-10-08 has whole-road stack rows in pairs.csv: the solve stops and says to run make again (your three tables are kept). An edits.csv stack with no part stops it too: give the row a part (or one row per part). An example: Monaco's hand-made tables in examples/levels/monaco/.

An area that belongs to a database

make_area(edges, folder, db="monaco.duckdb") ties the area to a DuckDB file (area.json): every solve, the editor's too, also writes the result into it (visualization.edge_levels, with each edge's ends; rs.save_area_levels). rs.load_area_levels(con, edges) reads it back for the same edges and stops with a message for any other edges. duckOSM's duckosm levels monaco.duckdb makes such an area for all travel modes together (monaco.levels/ next to the file), and mapstyle draws from it. Keep edits.csv, heads.csv and caps.csv: with them a rebuilt file gets the same drawing order back.

Two edges on the same line are one road (its two directions) only when they are the same kind (highway, tunnel, bridge, layer): a footway lying exactly on a street stays a road of its own.

Bridges and tunnels

• A bridge has a slate casing (bridge_casing_color) and a soft shadow (bridge_shadow; in the full look shifted down-right, in simple mode, the default, blurred evenly around the bridge): each part of the bridge casts it at its own casing number, so it lies on what the bridge crosses, never on its own road. Hiding the bridges hides it too.
• A tunnel fades toward a chosen colour (tunnel_toward, default Sand), its fill, names, arrows and attached items alike: tunnel_strength (default 60; 0 is the normal colours, 100 the full tunnel colours) and a two-colour dashed casing (tunnel_palette, default Graphite + silver). To try other values, tunnel_control=True adds a Tunnels box with its steps and colour list; rsSetTunnelStyle({strength, palette, ratio}) does the same from your page.

Your own numbers

The solver is one way to fill the columns. Anything that gives whole numbers per edge works, for example a sidewalk at -1 under a street at 0 and a crossing at 1 over it:

edges["casing_level"] = edges["fill_level"] = edges["kind"].map({"sidewalk": -1, "street": 0, "crossing": 1})

To give your own band per edge and let the solver do the rest: rs.compute_levels(edges, band_col="band").

Good to know

• Each position that occurs gets its casing and fill layers (only those something is drawn by: no bridge layers without a bridge there), so keep the range small.
• rsColor and colour-by reach every position. tiles=True works with positions, in both looks.
• render_edges takes no band and no order: compute the levels first.
